Control Emulator Pre-Processors

CNC Pre-processors are meant to handle specific NC control syntax for the main NC controller brands. The database CE object can identify register and codes and handle them accordingly but when there is advance syntax, the CERUN processor needs to have a way to handle those without requiring the user to write complicated macros.

The pre-processor is selected from the CE questionnaire in the "General Information" section at question #7.00.

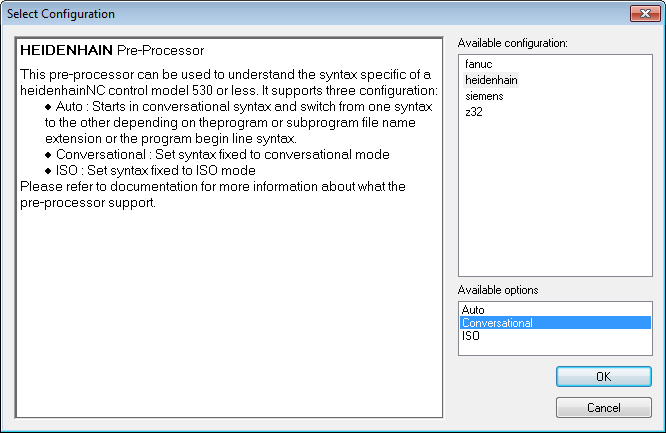

Click the "..." browse button to select one of the available pre-processors or use the text box drop-down arrow to reset it to "NA". Shown below is the pre-processor selection panel.

Here are the available CNC pre-processors:

• Fanuc

• Heidenhain

• Mazak EIA/ISO

• Okuma

• OSAI 10 Series

• Siemens

• Z32

• ABB
