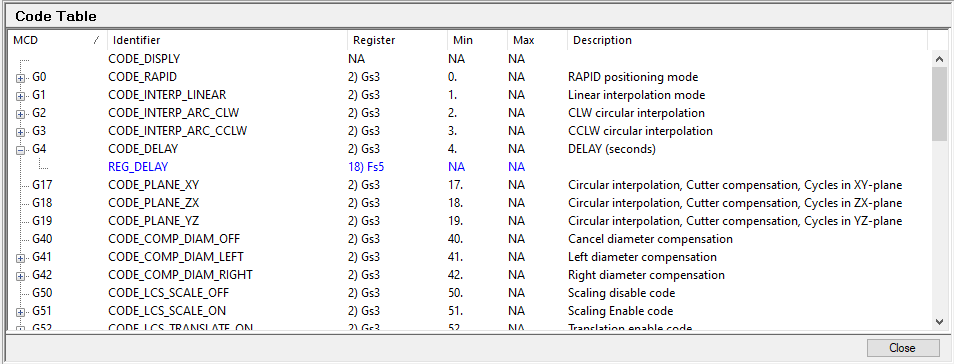

Code Table View

The Code Table summarises the CODE type data responses in the questionnaire and it's associated DATA type data. Codes are actions which are processed by the runtime module (e.g., G4 is a "dwell" action code). Datas used by the Code are displayed as subsets of the Code.

A CODE is basically a register or text that will be matched on the block and that will fire actions. Like G01 is a register used as a CODE to fire the linear interpolation action.

It is important to distinguish a CODE from a DATA register. Both are identified from the block text, then the CODES are executing actions and those actions are using the DATA registers as their parameters. For example, the CODE_LINEAR code is using all the axis REG_AXIS_X, REG_AXIS_Y, ... as its values.

Column Description

Double Mouse Click: Double Click on record to tracing back to where it was defined in questionaire

Mouse Click: Click or Key Down to select and show detailed information in questionaire
