CAM Interface Kits

Icam Post interfaces to different CAM systems through the use of CAM Interface Kits. Each such kit consists of a file named ICAM.DEF and other necessary files (as listed here), all grouped together in a directory named after the CAM system or its vendor. These directories can be found in the “kit” subdirectory below the install point. For example, the Generic interface can be found in the C:\Program Files\ICAM V27\kit\Generic directory.

The following interfaces are available with Icam Productivity Tools V27:

CAM Interface Name

Description

Cadds5

PTC, originally developed by ComputerVision

Cadra

SoftTech CadraNC

Camand

SDRC, originally developed by Camax

CAMWorks

Geometric Ltd.

3DEXPERIENCE

Dassault Systèmes APT-like aptsource

Cimatron

Cimatron Ltd. CimatronE NC

Creo

PTC Pro/Manufacturing, Wildfire

eM_Machine

Tecnomatix

FeatureCAM

Autodesk APT-like aptsource

Fusion 360

Autodesk APT-like aptsource (Icam APT PP)

Generic

Generic APT-like interface

hyperMILL

OPEN MIND Technologies AG.

Icam

Icam CAD-APT and CAM-APT-SURF binary

IDEAS

SDRC MasterSeries

Intercim

Austin NC Intercim APT

Intergraph

Intergraph

Mastercam

CNC Software Inc.

NCCS_NCLCAM

NCCS binary

NX_CLF

Siemens NX binary clf file, formerly Unigraphics

NX_CLS

Siemens NX APT-like cls using NX templates

NX_ICAM

Siemens NX APT-like cls using Icam template

NICAM

Software Magic NICAM IV APT

Pathtrace

EdgeCAM

PowerMILL

Autodesk binary CLDATA (formerly DelCAM)

SurfCAM

Vero Software (formerly SURFWARE)

TopSolid

Missler Software TopSolid CAM V6

CAM systems not listed in the table above may or may not require an interface kit to operate with Icam Post. Generally speaking, those that generate an APT-like CLDATA are more likely to be supported than those that do not. Icam Post can interface with some binary CLDATA formats, but these are individually licensed options. See “Creating or Modifying Interface Kits” for instructions on creating new interfaces and modifying existing interfaces. New and modified kits should be created in the application data C:\ProgramData\ICAM\270\kit directory.

For compatibility purposes, kit ICAM.DEF files can include a kit_aliases definition that lists one or more semicolon separated names that also can be used to identify that interface kit.

Selecting a CAM Interface

By default, GENER will attempt to automatically select an appropriate CAM interface. It does so by using kit… definitions in the ICAM.DEF file in each interface kit.

The kit_clfile symbol defines a file-match pattern unique to the specific CAM system. A semicolon can be used to delimit a series of possible file-match patterns (e.g., “*.ncl;*.ncl.*”).

The kit_cltext symbol defines text (in the form of a regular expression) that is expected to be found in the first 100 bytes of the file if the kit can not be uniquely defined by the file-match pattern.

The kit_aliases definition lists one or more semicolon separated names that also can be used to identify that interface kit.

If two or more kits are valid candidates, then GENER will prompt for the appropriate kit, or if prompting is not possible, will abort execution with a diagnostic message. QUEST does not have the ability to automatically select an appropriate kit since QUEST does not input CL files. If an interface kit is not selected, QUEST will use the default built-in list of Major and Minor words.

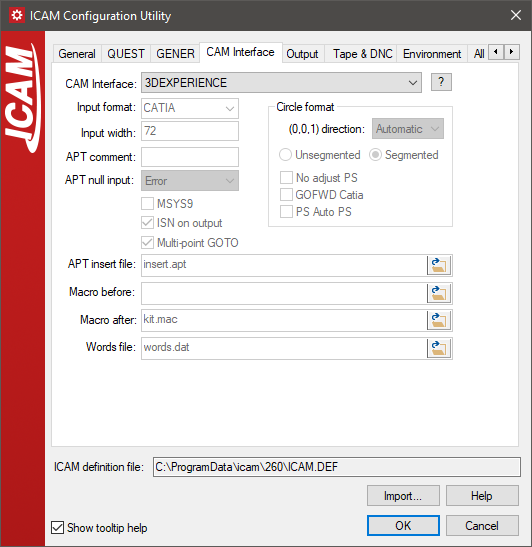

Selecting a CAM interface ensures that both QUEST and GENER are configured to work with the same set of Major/Minor keyword definitions, which is important for macro processing. Use the Configuration utility to select an interface (see “The Icam Configuration Utility”). This utility can also be run by selecting Tools»Configuration from the QUEST and GENER drop-down menu-bars. Choose the “CAM Interface” tab and then select one of the interfaces listed in the “CAM Interface” input field. The [?] button can be pressed to get more information on the selected interface. The CAM interface selection will be defined in the icam_appdata ICAM.DEF file (e.g., C:\ProgramData\ICAM\270\ICAM.DEF) using the interface_kit symbol. For example, after selecting the “Generic” interface kit in the configuration utility, the main ICAM.DEF should contain the following definition:

let INTERFACE_KIT = "Generic"

The interface kit setting in the ICAM.DEF file can be overridden when running GENER from the launch panel. Select the CAM button to bring up the “CAM Interface Kit” panel and then choose an appropriate interface from the “CAM System” drop-down list. As with the Configuration utility, a list of standard CAM interfaces will be shown along with a [?] button to obtain more details on the selected one. It is important to note that CAM interface customization made with this dialog are only remembered in the Windows Registry; they do not affect the ICAM.DEF file.

The interface kit setting in the ICAM.DEF file can also be overridden in QUEST and GENER by specifying the /kit command line qualifier when starting the software. For example, the following command starts GENER using the Icam interface kit, regardless of what may be specified in the ICAM.DEF file:

gener /kit=Icam test.cld /post=abc01 …

You can also force QUEST or GENER to run without an interface, regardless of ICAM.DEF settings, by specifying the kit command line qualifier without an interface name.

gener /kit test.cld /post=abc01 …

Typical Interface Kit Files

The following is a list of files you are likely to find in kit directories. Not all kits use all of these files, but every kit must contain, at a minimum, an ICAM.DEF file.

ICAM.DEF
CAP270.DEF
insert.apt
kit.mac and possibly kit.obj
words.dat
readme.htm or readme.txt

The ICAM.DEF file found in a kit directory defines just those environment variables that specify that kit’s unique CLDATA file format. Environment variables defined in a kit DEF file override (i.e., take precedence over) those that are specified in the main ICAM.DEF file (e.g., the one in the install directory).

A CAP270.DEF file will be found in each kit directory where the CAM system outputs an APT-like CLDATA file. This DEF file is used by the obsolete CAD-APT utility. CAD-APT was a required for GENER versions 10.2 and earlier, which only had the ability to read Icam formatted binary CL files. CAD-APT processes APT-like CL files and converts them to an Icam binary format. The CAD-APT utility is maintained for backwards compatibility. CAD-APT can also be useful in situations where you are working with extremely large CL files that are unable to fit entirely in the available virtual memory of the computer.

The insert.apt file is normally found in kit directories where the CAM system outputs APT-like CLDATA. This file contains special instructions for the APT front-end processor used by GENER. The kit ICAM.DEF file will contain an insert symbol definition referencing this file if it exists. The name insert.apt is used as a standard convention only; any name can be used.

The kit.mac macro source file contains one or more macros that are needed in order to convert the CAM system’s fixed post-processor commands into a format recognizable by Icam Post. The kit.obj file is an optional pre-compiled version of the macro source. Either file can be loaded by GENER at the start of a job (see “Pre-Compiling Macros for GENER”). During macro processing, macros defined in the kit.mac or kit.obj file can be setup to be matched either before or after post-processor defined macros. The choice is controlled by the use of either the mbdef or madef symbol definition, which references the kit macro. Standard interfaces use the madef symbol to match the kit macros after post defined macros. The names kit.mac and kit.obj are used as a standard convention only; any names can be used.

The words.dat file defines keywords and associated integer codes for any words that the CAM system outputs that are not known by Icam Post. This is necessary because Icam Post internally represents keywords by their numeric equivalent. The kit ICAM.DEF file will contain a words symbol definition referencing this file if it exists. The name words.dat is used as a standard convention only; any name can be used.

The readme.htm or readme.txt file contains information that might be of interest to those who use the kit. The [?] button beside the interface kit selection in the Configuration utility and GENER Launch Panel CAM selection looks, in order, for files named readme.htm, readme.html and readme.txt.

Creating or Modifying Interface Kits

You can easily create a new interface kit or modify an existing interface kit for your own purposes. It is highly recommended that you do not modify any of the installed kit files, since changes to these files can be lost when upgrading to a new release or when reinstalling the software for any reason. Instead, new and modified interface kits should be created in the kit subdirectory of the application data directory.

The kit subdirectory name is used to identify the kit itself. The application data kit subdirectory is always searched first for a matching kit name, before searching the installation kit subdirectory. Therefore, if the same kit exists in both the application data and installation kit directories, the application data kit is the one that will be used. Kit names are case insensitive.

Each kit must contain an ICAM.DEF file, which identifies the subdirectory as being an interface kit and also defines the configuration details that are necessary for that specific CAM system format. Kit DEF file symbols take precedence over (i.e., override) those in the regular ICAM.DEF file.

The recommended method of modifying an existing interface kit is to recursively copy that kit’s files from the installation kit subdirectory to the application data kit subdirectory. Once the copy is done, make any modifications necessary to the kit files in the application data area. You may choose to leave the name as-is, or to modify the application data kit name to something unique (do not include spaces in the name).
The recommended method of creating a new interface kit is to choose an existing kit that most closely matches your requirements and then to recursively copy that kit’s files from the installation kit subdirectory to the application data kit subdirectory. Once the copy is done, rename the application data kit to something appropriate and then make any modifications necessary to the kit files.

Every kit must have an ICAM.DEF file. We recommend that the kit ICAM.DEF file only define those configuration settings that are necessary for the new interface. Symbol settings defined in the kit ICAM.DEF file override those in the default ICAM.DEF file. See “The ICAM.DEF File” for a list of configuration settings. Settings that affect the entire site, regardless of interface (e.g., the choice of HTML or text listing format), should be made to the top level ICAM.DEF file using the Configuration utility (see “The Icam Configuration Utility”).

A kit should include either a readme.htm or readme.txt file describing the effect the interface will have on the input CL file or post-processor. This file will be displayed if the [?] button is pressed to the right of the CAM system selection in the GENER launch panel.

A powerful feature of Icam Post is the ability to define a standard set of user-defined macros to be used by all post-processors running with the interface kit. These user-defined macros can handle syntax conversions to ensure that all post-processor commands output by the CAM system will be recognized by Icam Post. An ENDMAC command terminates each macro. Startup/shutdown macros can not be included. The following is a simple example of a kit.mac file that performs some post-processor command conversions. You should view the kit.mac files supplied with Icam Post to get a better idea of what is possible.

$$ Convert LOADTL… to LOAD/TOOL…
LOADTL/$P1*
LOAD/TOOL,$P1
ENDMAC

$$ Ignore parameters on GOHOME
GOHOME/*
GOHOME
ENDMAC

The macro source (.mac) file must be referenced by either the madef or mbdef symbol in the kit ICAM.DEF file in order for the GENER to use the macros. GENER will compile the macros at the start of execution and terminate processing if there are errors. Alternately, you can pre-compile the macro file using QUEST and reference the macro object (.obj) file with these symbols. See “Pre-Compiling Macros for GENER” for instructions on how this is accomplished. Note that it is possible to define both before and after macros, individually referenced by the mbdef and madef symbols.

GENER will list the selected interface kit name along with the macro, insert and words file names, all on the first page of the listing.
